Security Architecture Views: Showing Your Design

FDA expects four security architecture views in a premarket submission: a global system view, a multi-patient harm view, an updatability and patchability view, and security use case views. Together they show reviewers where your device connects, where trust boundaries sit, and how security holds up in real clinical scenarios.

3.5.1 Why Architecture Views Matter

Architecture views are like blueprints that show how security is built into your device. They help:

• FDA reviewers understand your security design
• Development teams implement consistently
• Security assessments identify gaps
• Future maintainers understand the system

The FDA specifically requires four types of architecture views, each serving a different purpose. For why these architectural decisions pay off across the device lifecycle, see Security architecture as the foundation of your medical device.

3.5.2 Global System View

Purpose

According to FDA guidance: "A global system view should describe the overall medical device system, including the device itself and all internal and external connections."

System Components:

• The medical device itself
• Connected medical devices
• IT infrastructure (servers, databases)
• Network components
• External services (cloud, update servers)
• User interfaces (apps, workstations)

Communication Paths:

• Wired connections (USB, Ethernet)
• Wireless connections (Wi-Fi, Bluetooth)
• Remote connections (VPN, internet)
• Service connections (JTAG, serial)

Trust Boundaries:

• Between device and external world
• Between different privilege levels
• Between different networks
• Between different user types

Example Global System View Elements

Key Considerations

Completeness: Include ALL connections, even those used rarely (like service ports)

Clarity: Use standard notation and clear labels

Updates: Keep current as system evolves

3.5.3 Multi-Patient Harm View

Purpose

Per FDA guidance, this view "addresses how the device and system defend against and/or respond to attacks with the potential to harm multiple patients."

Understanding Multi-Patient Harm

Multi-patient harm can occur when:

• Multiple devices are compromised simultaneously
• A central system affecting multiple devices fails
• Malware spreads between devices
• Common vulnerabilities affect device fleets

What to Include

Attack Scenarios:

• Ransomware affecting all devices on network
• Compromised update pushing malware
• Central monitoring system failure
• Coordinated device manipulation

Defensive Measures:

• Network segmentation
• Device isolation capabilities
• Anomaly detection
• Incident response procedures

Impact Analysis:

• How many devices could be affected?
• What's the patient impact?
• How quickly could it spread?
• What's the recovery time?

Example Scenarios to Address

1. Network-Based Attack

   • Attacker gains network access
   • Scans for vulnerable devices
   • Exploits common vulnerability
   • Compromises multiple devices

2. Supply Chain Attack

   • Malicious update created
   • Distributed to all devices
   • Activates simultaneously
   • Affects entire fleet

3. Central System Compromise

   • EMR system breached
   • Sends malicious commands
   • Multiple devices respond
   • Patient care disrupted

Example Multi-Patient Harm View

3.5.4 Updateability and Patchability View

Purpose

This view "describes the end-to-end process that permits software updates and patches to be deployed to the device."

Critical Update Path Elements

Update Creation:

• Development environment security
• Code signing process
• Update packaging
• Version control

Update Distribution:

• Update server security
• Distribution channels
• Network paths
• Authentication methods

Update Installation:

• Device authentication of updates
• Integrity verification
• Installation process
• Rollback capability

Update Verification:

• Success confirmation
• Functionality testing
• Error handling
• Status reporting

Security Controls Throughout

Each step needs specific security controls:

1. Authentication: Verify update source
2. Integrity: Ensure update unchanged
3. Confidentiality: Protect update contents
4. Availability: Maintain device function
5. Authorization: Control who can update

Common Pitfalls to Avoid

• Unsigned updates
• Unencrypted distribution
• No rollback mechanism
• Weak authentication
• Missing integrity checks

Example Updateability and Patchability View

3.5.5 Security Use Case Views

Purpose

These views "cover all medical device system functionality through which a security compromise could impact the safety or effectiveness of the device."

Identifying Critical Use Cases

Ask yourself:

• What functions could harm patients if compromised?
• Which features have the highest privilege?
• What operations handle sensitive data?
• Which interfaces are most exposed?

Common Security-Critical Use Cases

1. Clinical Parameter Changes

   • Therapy settings
   • Alarm limits
   • Dosage calculations
   • Treatment protocols

2. Emergency Access

   • Override procedures
   • Rapid access needs
   • Audit requirements
   • Recovery methods

3. Remote Access

   • Service connections
   • Telemedicine interfaces
   • Remote monitoring
   • Cloud connectivity

4. Data Management

   • Patient data access
   • Export functions
   • Backup procedures
   • Data deletion

Documenting Each Use Case

For each security use case, document:

Scenario Description:

• What happens normally
• User types involved
• Data flows
• Success criteria

Security Requirements:

• Authentication needs
• Authorization levels
• Audit requirements
• Data protection

Threat Scenarios:

• How could this be attacked?
• What's the impact?
• How is it detected?
• How is it prevented?

Security Controls:

• Specific measures implemented
• Defense in depth approach
• Monitoring capabilities
• Response procedures

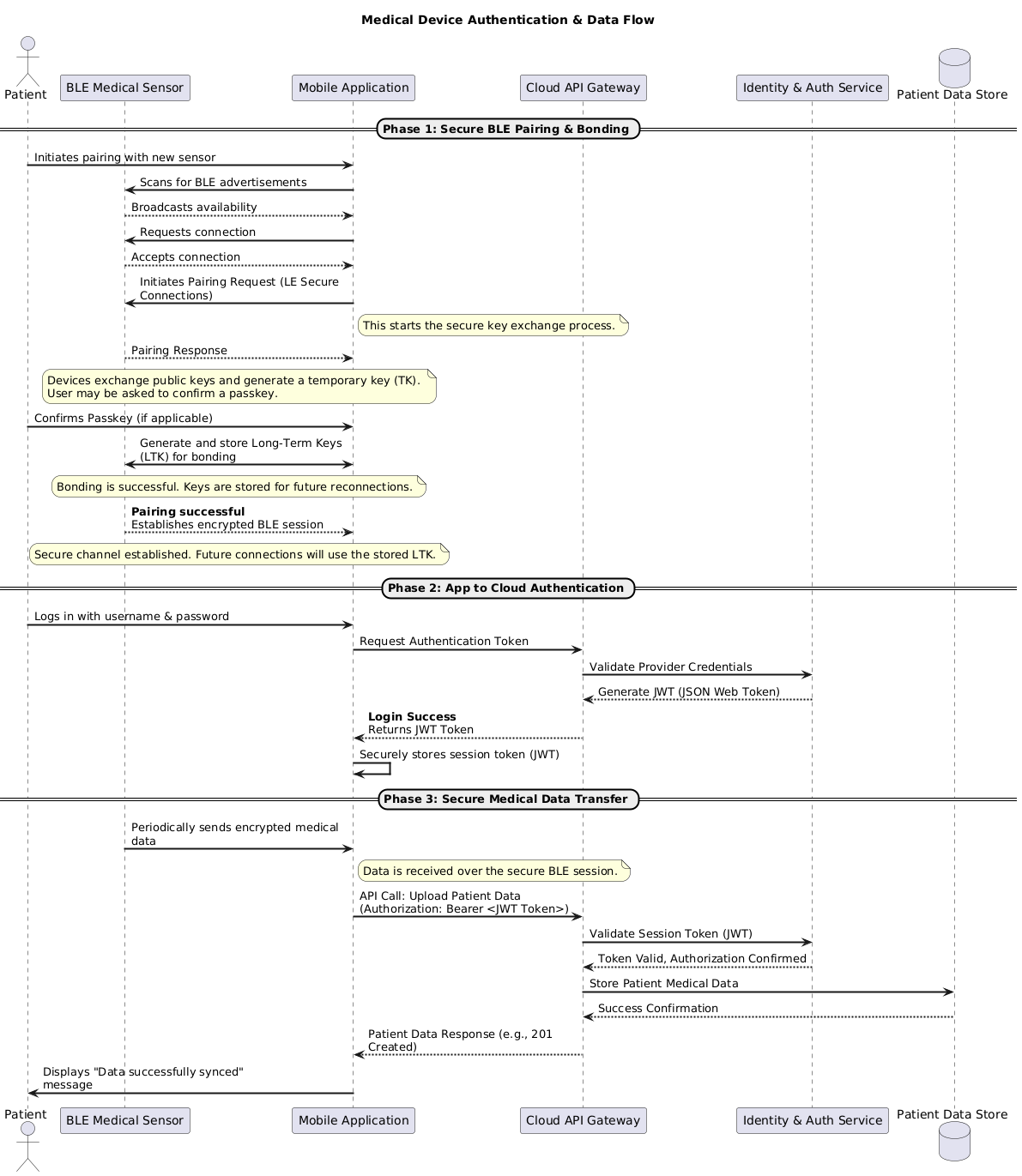

Example Use Case View

For a step-by-step walkthrough of building these views, see How to create an architecture security view for your medical device.
