IEC 62304 to FDA eSTAR: A Software Documentation Guide

2025-10-28Jose Bohorquez

Map IEC 62304 processes to FDA eSTAR requirements. Complete guide to 10 required software documents for medical device submissions with examples.

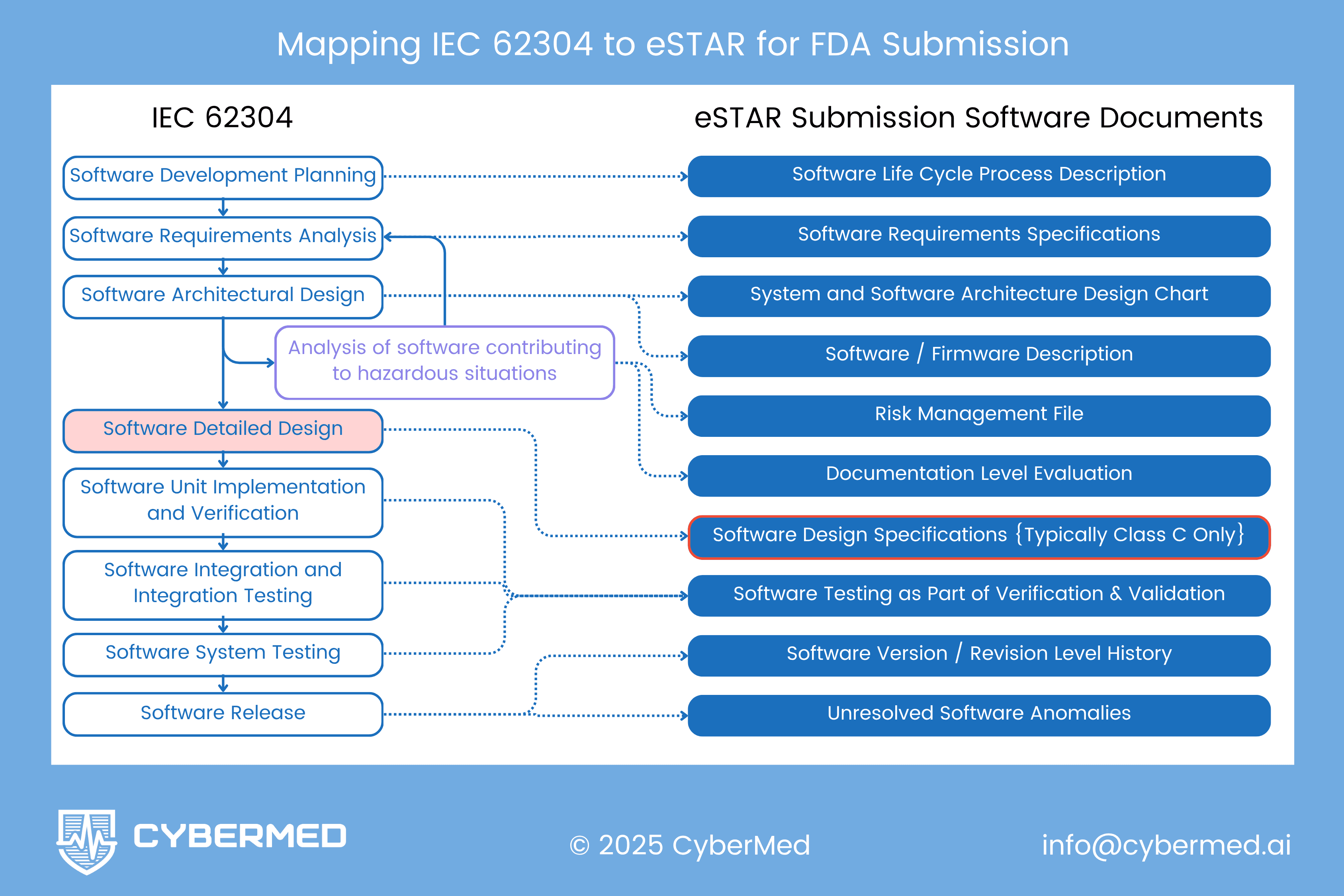

Diagram showing mapping between IEC 62304 software development processes and FDA eSTAR submission documents

Mapping the Process to the Artifacts

Summary

Process-to-deliverable mapping - Clear connection between IEC 62304 development activities and FDA eSTAR requirements eliminates duplicate documentation work
Documentation level determination - Risk-based Basic vs Enhanced requirements dictate 9 or 10 documents based on software safety classification
The 10 essential documents - Complete list of FDA-required software documentation with specific IEC 62304 source mapping for efficient preparation
Efficiency through alignment - Single development process following IEC 62304 naturally produces all FDA submission deliverables
Practical implementation - Strategic documentation structure decisions made early in development reduce submission preparation time by 60-70%

What you'll learn: How to generate FDA eSTAR software documentation directly from your IEC 62304 development process, eliminating redundant work and ensuring submission completeness.

Introduction

If your medical device has software, you've likely experienced this frustration: your team follows IEC 62304 diligently throughout development, then scrambles to "translate" months of work into FDA submission documents. Requirements get reformatted. Design documentation gets reorganized. Testing records get repackaged. The same information appears in multiple forms across different documents.

This duplicate documentation burden stems from a fundamental misunderstanding about the relationship between IEC 62304 and FDA requirements. IEC 62304 describes a process-based software development lifecycle: what activities to perform and when. FDA's eSTAR software section requires specific deliverable documents: concrete outputs that demonstrate safety and effectiveness.

The disconnect creates real costs: weeks of additional documentation effort, delayed submissions, and increased regulatory review cycles when documentation gaps surface. Quality and regulatory teams waste time creating separate "FDA versions" of documentation that already exists in the design history file.

Most companies miss a key insight: IEC 62304 and FDA eSTAR requirements are complementary, not contradictory. Following IEC 62304 systematically produces all required eSTAR documents as natural byproducts of proper development. The mapping is clear, direct, and eliminates redundant documentation when understood correctly.

This guide provides the complete mapping between IEC 62304 development processes and FDA eSTAR deliverables. You'll learn which specific IEC 62304 activities generate each required document, how to structure your documentation to satisfy both requirements simultaneously, and practical strategies for documentation efficiency that reduce submission preparation time.

Understanding FDA's Two-Tier Documentation Approach

FDA recognizes that software risk varies across medical devices. A blood glucose meter carries different patient risk than an implantable pacemaker. Documentation requirements should match this risk profile rather than imposing one-size-fits-all burdens.

Documentation Level Evaluation

The first document FDA requires is your Documentation Level Evaluation: a statement justifying whether your submission requires Basic or Enhanced level documentation. This determination shapes your entire documentation package.

According to the FDA's 2023 Software Documentation Guidance, the level depends on one critical question: Could a failure or flaw of your device software function present a probable risk of death or serious injury to a patient, user, or others in the environment of use?

This assessment must occur prior to implementation of risk control measures. You evaluate the raw, unmitigated risk. If the answer is yes, Enhanced documentation applies. If no, Basic documentation suffices.

Your IEC 62304 software safety classification (Class A, B, or C per Section 4.3) provides the foundation for this determination, but FDA's assessment considers the complete risk picture including reasonably foreseeable misuse and cybersecurity vulnerabilities.

Scope Difference Between Levels

Basic Level requires 9 documents and applies when software failures would not present probable risk of death or serious injury. Examples include non-contact thermometers, blood pressure monitors, and certain diagnostic aids.

Enhanced Level requires 10 documents and applies when software failures could present probable risk of death or serious injury. Examples include ventilators, infusion pumps, pacemakers, and blood screening tests. FDA also recommends Enhanced documentation for all Class III devices and drug/device combination products unless you provide detailed rationale otherwise.

The difference between levels extends beyond document count:

Enhanced Level Requirements Include:

Software Design Specification (SDS) - Detailed technical design documentation showing how requirements are implemented
Complete configuration management and maintenance plan documents - Full plans rather than summaries
Unit and integration level test protocols and reports - Detailed test documentation with expected vs actual results, not just summaries

These additional requirements reflect the higher risk and the corresponding need for FDA reviewers to understand implementation details, not just high-level design and system testing.

Understanding your documentation level determines resource planning, timeline estimates, and documentation strategy from project inception.

The 10 Required eSTAR Software Documents

FDA's eSTAR form organizes software documentation into specific sections. Each serves a distinct purpose in demonstrating safety and effectiveness, with clear origins in your IEC 62304 process.

Document 1: Documentation Level Evaluation

Purpose: Justify Basic vs Enhanced documentation level based on risk analysis

Content Requirements:

Statement of determined documentation level
Risk-based rationale accounting for device's intended use
References to supporting documentation (Risk Management File, Software Description)

IEC 62304 Source:

Section 4.3 (Software safety classification)
Section 7.1 (Risk management activities)
Risk Management File per ISO 14971

Key Elements: Classification rationale, hazard analysis showing software contribution to hazardous situations, patient impact assessment prior to risk controls

Practical Tip: Document this early and thoroughly. FDA may question Basic level determinations for devices with any potential for serious patient harm.

Document 2: Software Description

Purpose: High-level overview enabling FDA reviewers to understand software features, functions, and operational environment

Content Requirements:

Significant software features and functions
Operational environment and hardware platforms
Software inputs and outputs with sources and destinations
User interactions and clinical workflow
Block diagrams, flow charts, state diagrams as needed

IEC 62304 Sources:

Section 5.1 (Software development planning)
Section 5.3 (Software architectural design)

Key Elements: System context diagrams, deployment architecture, user workflows, interoperability specifications, AI/ML methodology if applicable

Practical Tip: This becomes your submission "executive summary" for software. Invest time making it clear and comprehensive. Reviewers read this first.

Document 3: Risk Management File

Purpose: ISO 14971-compliant analysis demonstrating systematic identification and mitigation of software-related risks

Content Requirements:

Risk Management Plan with acceptability criteria
Risk Assessment (analysis, evaluation, control, benefit-risk)
Risk Management Report showing plan implementation and residual risk acceptability
Traceability from hazards to risk controls to verification

IEC 62304 Sources:

Integrated throughout development
Section 7 (Software Risk Management Process)
Clause 4.3 (Software safety classification)

Key Elements: Hazardous situations, risk controls with verification, traceability matrix linking hazards → requirements → design → tests

Document 4: Software Requirements Specification (SRS)

Purpose: Complete, testable, traceable requirements defining what the software will do

Content Requirements:

Functional requirements defining software behaviors
Performance requirements with specific metrics
Interface requirements (hardware, software, user)
Safety-related requirements derived from risk assessment
Security requirements addressing cybersecurity risks
All ranges, limits, defaults, and specific values

IEC 62304 Source:

Section 5.2 (Software requirements analysis)

Key Elements: Requirements with unique IDs, acceptance criteria, traceability to system requirements and risks, verification method for each requirement

Practical Tip: Each requirement must be verifiable through testing. Avoid ambiguous language. Requirements are typically written using "shall" statements with measurable criteria.

Document 5: System and Software Architecture Design Chart

Purpose: Detailed system structure showing component relationships, interfaces, and data flows

Content Requirements:

Architecture diagrams showing modules, layers, and interfaces
Module relationships and dependencies
Data inputs/outputs and flow among modules
User and external product interactions
IT infrastructure and deployment architecture

IEC 62304 Source:

Section 5.3 (Software architectural design)

Key Elements: Component diagrams, sequence diagrams, interface control documents, deployment diagrams, cybersecurity architecture

Note: The diagram in this post shows how "Analysis of software contributing to hazardous situations" bridges architectural design to multiple deliverables. It feeds Software Description, Risk Management File, AND Documentation Level Evaluation. This analysis is foundational for safety classification.

Practical Tip: Consider using standard notation (UML, SysML) for consistency. Ensure diagrams are readable without excessive magnification. Multiple complementary views often work better than one complex diagram.

Document 6: Software Design Specification (SDS) [Enhanced Level Only]

Purpose: Detailed technical implementation showing how design implements requirements

Content Requirements:

Technical design details of software units/modules
Algorithms and data structures
Implementation specifications
Traceability showing SDS completely and correctly implements SRS

IEC 62304 Source:

Section 5.4 (Software detailed design)

Key Elements: Unit-level design, detailed algorithms, interface implementations, data structure definitions

Important: Required only for Enhanced (Class C) documentation level. For Basic level, maintain this in your DHF but don't submit unless FDA requests during review.

Practical Tip: SDS should be created prospectively to guide development, not documented retrospectively. FDA looks for evidence that design preceded implementation, not ad hoc coding followed by documentation.

Document 7: Development and Configuration Management

Purpose: Demonstrate controlled development environment with systematic processes

Content Requirements:

For Basic Level:

Summary of lifecycle processes, coding standards, methods, and tools
Main deliverables from development activities
Traceability processes linking requirements → design → tests → risk controls
Configuration and change management summary
Software maintenance processes with regression analysis

For Enhanced Level:

Basic level content PLUS
Complete configuration management plan document
Complete maintenance plan document
Detailed procedures and tools documentation

IEC 62304 Sources:

Section 5.1 (Software development planning)
Section 8 (Software configuration management)
Section 6 (Software maintenance process)

Key Elements: Development plan, configuration management plan, change control procedures, traceability methodology, regression testing approach

Alternative Approach: You may provide Declaration of Conformity to specific clauses of FDA-recognized IEC 62304 instead of narrative documentation. Basic level requires conformity to clauses 5.1.1, 5.1.2, 5.1.3, 5.1.6, 5.1.7, 5.1.8, 5.1.9, Clause 6, and Clause 8. Enhanced requires conformity to complete Clause 5.1, Clause 6, and Clause 8.

Practical Tip: Reference existing QMS procedures where applicable rather than duplicating documentation.

Document 8: Software Testing Documentation

Purpose: Verification and validation evidence demonstrating requirements are met

Content Requirements:

For Basic Level:

Summary of unit, integration, and system testing
System level test protocol with expected results, actual results, pass/fail determination
System level test report demonstrating acceptable execution
Version tested and overall pass/fail results
Regression analysis and testing results
Response to failed tests

For Enhanced Level:

Basic level content PLUS
Unit level test protocols and reports (expected vs actual, pass/fail)
Integration level test protocols and reports (expected vs actual, pass/fail)

IEC 62304 Sources:

Section 5.5 (Software unit implementation and verification)
Section 5.6 (Software integration and integration testing)
Section 5.7 (Software system testing)

Key Elements: Test plans, test cases, test results, requirements traceability matrix, regression test results, anomaly tracking

Critical: Must demonstrate complete requirements coverage. FDA expects traceability from requirements through test cases to results.

Document 9: Software Version/Revision Level History

Purpose: Complete record of tested and released versions

Content Requirements:

History of all tested versions beginning when design controls applied
Date, version number, and description of changes for each version
Final release version with any differences from tested version
Assessment of differences' effect on safety and effectiveness
For modifications: highlight prior cleared/approved versions and submission numbers

IEC 62304 Sources:

Section 5.8 (Software release)
Section 8 (Software configuration management)

Key Elements: Version numbering scheme, release notes, verification status for each version, change descriptions

Practical Tip: Maintain this from project start, not retroactively. Line-item tabulation format works well. Last entry should be the final release version.

Document 10: Unresolved Software Anomalies

Purpose: Known bugs with safety/effectiveness impact analysis

Content Requirements:

Description of each unresolved anomaly
How anomaly was discovered and root cause if known
Evaluation of impact on safety and effectiveness
Risk-based rationale for not correcting the anomaly
Communication to users about mitigations or workarounds

IEC 62304 Sources:

Section 9 (Software problem resolution process)

Key Elements: Anomaly list with severity classification, impact assessment aligned with risk management plan, rationale for deferring fixes, user communications

Important: Empty list is acceptable if no unresolved anomalies exist. Don't feel compelled to list trivial issues.

Practical Tip: Consider using ANSI/AAMI SW91 defect classification taxonomy for consistency and clarity.

Beyond Software: Cybersecurity Documentation Requirements

The 9-10 software documents covered in this guide address the software development lifecycle and system design requirements. However, FDA's cybersecurity expectations extend beyond software engineering documentation.

Medical device manufacturers must also submit 12-14 cybersecurity-specific documents covering threat modeling, vulnerability management, security architecture, penetration testing results, and security controls implementation. These cybersecurity requirements are separate from (but complementary to) the software lifecycle documentation.

The cybersecurity documentation demonstrates your systematic approach to identifying, analyzing, and mitigating security risks throughout the device lifecycle. This includes premarket security risk assessment, security architecture documentation, and plans for post-market vulnerability management.

For comprehensive background on cybersecurity requirements:

Documents FDA Requires for Software and Cybersecurity - Complete list of both software and cybersecurity submission requirements
Complete Guide to FDA Cybersecurity Risk Assessment - Detailed methodology for security risk analysis
FDA Cybersecurity Requirements for Medical Devices - Overview of regulatory expectations
2025 Update to FDA Cybersecurity Guidance - Latest regulatory developments

While this guide focuses on the IEC 62304-to-eSTAR software documentation mapping, understanding cybersecurity requirements is equally critical for submission success. The software and cybersecurity documentation packages work together to demonstrate comprehensive device safety and effectiveness.

IEC 62304 Clause 5 Process Mapping

IEC 62304 Clause 5 defines the software development process in eight stages (5.1 through 5.8). Understanding how each stage produces eSTAR deliverables reveals the natural alignment between process and documentation.

The Development Process Flow

IEC 62304 structures development as a sequential yet iterative process:

5.1 Software Development Planning → Establishes the development approach, resources, and plans

5.2 Software Requirements Analysis → Defines what the software shall do

5.3 Software Architectural Design → Determines how software will be structured

5.4 Software Detailed Design → Specifies implementation details for software units

5.5 Software Unit Implementation and Verification → Codes and verifies individual units

5.6 Software Integration and Integration Testing → Combines units and tests interfaces

5.7 Software System Testing → Validates complete software against requirements

5.8 Software Release → Prepares software for delivery

Each stage has defined inputs, activities, and outputs. Those outputs become your eSTAR documents.

Direct Process-to-Document Mapping

IEC 62304 Process Stage	eSTAR Documents Produced
5.1 Development Planning	- Software Life Cycle Process Description - Development & Configuration Management
5.2 Requirements Analysis	- Software Requirements Specification
5.3 Architectural Design	- Software Description - System and Software Architecture Design Chart - Risk Management File (architectural analysis feeds risk assessment)
5.4 Detailed Design	- Software Design Specification (Enhanced only)
5.5 Unit Implementation	- Development & Configuration Management - Software Testing Documentation (unit tests)
5.6 Integration Testing	- Software Testing Documentation (integration tests)
5.7 System Testing	- Software Testing Documentation (system tests)
5.8 Software Release	- Software Version History - Unresolved Software Anomalies

The Critical Integration Point

This diagram highlights something crucial that many teams miss: "Analysis of software contributing to hazardous situations" serves as a bridge between IEC 62304 Section 5.3 (Architectural Design) and multiple eSTAR deliverables.

This analysis:

Informs the Software Description by identifying safety-critical functions requiring explanation
Populates the Risk Management File with software-specific hazards and hazardous situations
Justifies the Documentation Level Evaluation by demonstrating software contribution to patient risk

This integration point is where software architecture decisions meet patient safety assessment. Getting it right ensures consistency across your submission and demonstrates systematic safety thinking.

Key Insight: No Duplicate Documentation Needed

When you follow IEC 62304 systematically, all required eSTAR documents emerge as natural outputs. You're not creating separate "FDA documentation." Instead, you're properly organizing and presenting the design history file content that regulatory development requires anyway.

The secret is intentional documentation structure from project start, not retroactive reorganization at submission time.

Practical Implementation Strategies

Understanding the mapping intellectually differs from implementing it efficiently. These strategies reduce submission preparation time while maintaining compliance.

Strategy 1: Design Your Documentation Structure Early

Create templates aligned with both IEC 62304 and eSTAR requirements during project planning, not submission preparation.

Implementation:

Develop SRS template with sections mapping to FDA expectations (functional requirements, performance requirements, safety requirements, security requirements)
Structure risk management file to support both ISO 14971 and FDA submission needs
Establish consistent ID schemes enabling traceability (REQ-XXX, DESIGN-XXX, TEST-XXX, RISK-XXX)
Create traceability matrix template linking requirements → design → tests → risks

Benefit: Reduces submission preparation time by 60-70%. Teams report finishing submissions weeks earlier with pre-structured documentation.

Example: Instead of creating requirements in developer-friendly format then reformatting for FDA, write requirements in FDA-compatible format from day one. It satisfies both needs simultaneously.

Strategy 2: Maintain Living Documents

Update documentation as development progresses rather than batch-documenting at project end.

Implementation:

Establish documentation review in your development workflow (e.g., requirements reviewed before design, design reviewed before coding)
Use version control for all documentation, not just code
Schedule regular documentation reviews (weekly or biweekly) to catch gaps early
Make documentation updates part of "definition of done" for development tasks

Benefit: Always submission-ready. Eliminates the scramble to reconstruct decisions made months earlier. Supports faster review cycles when FDA questions arise.

Reality Check: Yes, this requires discipline. But retroactive documentation takes longer, introduces errors, and creates DHF issues if documentation doesn't match actual development timing.

Strategy 3: Leverage Your Quality Management System

Many eSTAR requirements map to existing QMS procedures. Reference rather than duplicate.

Implementation:

For configuration management, reference your QMS configuration control procedure with section numbers
For change management, reference your design change control SOP
For development processes, reference relevant QMS procedures (design controls, verification, validation)
Create summary documents that reference detailed procedures rather than reproducing them

Benefit: Reduces documentation volume while maintaining compliance. Avoids maintaining duplicate procedure sets.

Example: Rather than writing a 20-page configuration management plan, provide a 2-page summary referencing QMS procedures: "Configuration management follows [Company] SOP-123 Design Control, Section 4.5. Version control implemented per SOP-456 Document Control, Section 3.2."

Strategy 4: Create Bidirectional Traceability

FDA reviewers look for complete traceability throughout the documentation package. Implement it systematically.

Implementation:

Requirements trace forward to design, code, and tests
Requirements trace backward to system requirements and risks
Tests trace back to requirements they verify
Risk controls trace to requirements that implement them and tests that verify them
Use tools to automate traceability matrix generation where possible

Benefit: Demonstrates completeness. Enables impact analysis for changes. Supports efficient FDA responses when reviewers question specific requirements or test coverage.

Tool Tip: Traceability matrices with thousands of entries become unmanageable in spreadsheets. Consider requirements management tools with built-in traceability if your software complexity warrants it.

Common Pitfalls to Avoid

Learning from others' mistakes prevents costly delays:

Pitfall 1: Starting Documentation at Development End

Problem: Retroactive documentation doesn't match actual development sequence, creates DHF concerns
Solution: Establish documentation expectations before coding starts

Pitfall 2: Creating Separate "FDA" and "IEC 62304" Documents

Problem: Duplicate effort, risk of contradictions, difficult to maintain
Solution: Single documentation set satisfying both standards through intentional structure

Pitfall 3: Inadequate Traceability Between Documents

Problem: FDA questions about requirements coverage, risk control verification, test completeness
Solution: Implement traceability matrices linking all elements from project start

Pitfall 4: Forgetting Documentation Level Rationale

Problem: FDA questions Basic level determination, requests Enhanced documentation mid-review
Solution: Document level rationale thoroughly with risk assessment support

Pitfall 5: Missing Safety-Security Integration Points

Problem: Software architecture doesn't connect to risk assessment, hazardous situation analysis incomplete
Solution: "Analysis of software contributing to hazardous situations" as explicit architectural design activity feeding risk file

Conclusion

The perceived disconnect between IEC 62304's process focus and FDA's deliverable focus dissolves when you understand the mapping. IEC 62304's development process naturally produces the documents FDA requires for eSTAR submissions.

Key Takeaways:

Two Documentation Levels: Enhanced (10 documents) applies when software failures could cause death or serious injury; Basic (9 documents) applies otherwise. Enhanced requires SDS plus more detailed configuration management and testing documentation.
Direct Process Mapping: Each IEC 62304 Clause 5 stage produces specific eSTAR documents. Following the standard systematically generates all required deliverables.
Single Development Process: You don't need separate "FDA documentation" and "IEC 62304 documentation." Intentional structure satisfies both simultaneously.
Critical Integration: "Analysis of software contributing to hazardous situations" bridges architectural design to Software Description, Risk Management File, and Documentation Level Evaluation.

Practical Next Steps:

Determine Your Documentation Level and document the risk-based rationale thoroughly
Map Your Existing Documentation to eSTAR requirements to identify gaps
Establish Templates and Traceability for future projects aligned with both standards
Implement Living Documentation practices to stay submission-ready continuously

Medical device software documentation doesn't have to be painful. When IEC 62304 and FDA requirements align through proper planning, documentation becomes a natural byproduct of good development practice rather than a burdensome afterthought. The key is understanding the mapping and implementing it systematically from project inception.

References

FDA, "Content of Premarket Submissions for Device Software Functions," FDA Guidance, June 2023. [Online]. Available: https://www.fda.gov/regulatory-information/search-fda-guidance-documents/content-premarket-submissions-device-software-functions
IEC 62304:2006+A1:2015, "Medical device software — Software life cycle processes" [Online]. Available: https://www.iso.org/standard/38421.html
ISO 14971:2019, "Medical devices — Application of risk management to medical devices" [Online]. Available: https://www.iso.org/standard/72704.html
FDA, "General Principles of Software Validation," FDA Guidance, January 2002. [Online]. Available: https://www.fda.gov/regulatory-information/search-fda-guidance-documents/general-principles-software-validation

This content is for educational purposes and represents interpretation of current regulatory guidance. Always consult with qualified regulatory professionals for specific compliance decisions.
