Learn how to develop a robust architecture security view for your medical device, aligning with FDA cybersecurity guidelines, AAMI TIR57, AAMI SW96, and industry best practices.
Introduction
As medical devices become increasingly interconnected, cybersecurity threats pose a significant risk to patient safety and data integrity. To address these concerns, regulatory bodies like the FDA and industry standards such as AAMI SW96 recommend developing an Architecture Security View—a structured representation of how security is integrated into a medical device’s architecture.
This guide will outline how to create an architecture security view, helping medical device manufacturers design secure and regulatory-compliant systems. A well-designed security architecture enhances device resilience against cyber threats, ensuring compliance and protecting patient data.
Step 1: Define the System Architecture
The first step in creating a security view is to establish a clear architectural model of the medical device.
Key Actions:
- Identify hardware components (e.g., microcontrollers, sensors, communication modules, memory units).
- Map out software layers (e.g., embedded firmware, operating system, middleware, application software, security modules).
- Define communication pathways (e.g., Bluetooth, Wi-Fi, cellular, cloud services, hospital networks).
- Determine data flow (e.g., patient data transmission, logging, and storage mechanisms, remote monitoring, and control features).
- Identify interactions with external systems, such as electronic health records (EHRs), mobile applications, and cloud-based analytics platforms.

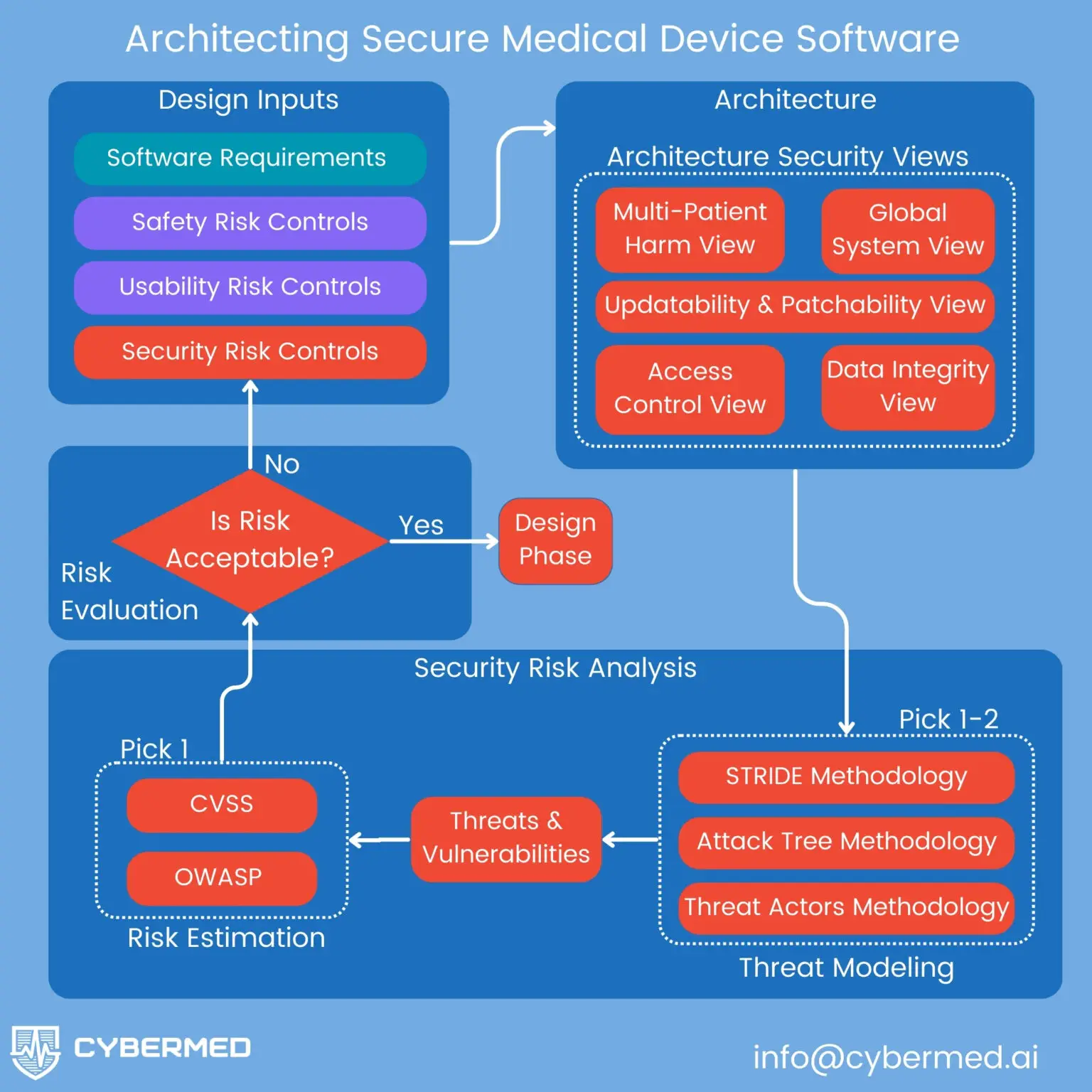

- Establish security views to analyze different aspects of system security, including:
Multi-Patient Harm Views
Multi-patient harm views help assess risks where cybersecurity vulnerabilities could affect multiple patients simultaneously. These include scenarios where:
- A single exploit in a connected infusion pump system disrupts multiple patient treatments.
- A ransomware attack on a hospital-wide medical device network prevents multiple patients from receiving timely care.
- Examples: Networked ventilators in an ICU that can be remotely controlled or disabled by an attacker.
Global System View
The global system view provides an overview of how a medical device interacts with other systems within its environment, ensuring security is maintained across all points of connection. This includes:
- The device ecosystem, including cloud services, mobile apps, hospital networks, and regulatory infrastructure.
- Dependencies and third-party integrations, identifying security risks in shared software components.
- Examples: A cloud-connected patient monitoring device that interfaces with hospital EHR systems and requires end-to-end encryption.
Updatability and Patchability View
Updatability and patchability views ensure that the medical device can be securely updated over time without introducing new security vulnerabilities. This includes:
- Secure firmware and software update mechanisms that prevent unauthorized modifications.
- Patch management policies to address vulnerabilities promptly without disrupting patient care.
- Examples: A remote defibrillator that supports digitally signed firmware updates to prevent malicious tampering.
Access Control View
The access control view defines how users and systems authenticate and authorize access to the device, ensuring only authorized parties can interact with it. This includes:
- User authentication methods such as biometrics, passwords, or multi-factor authentication.
- Role-based access control (RBAC) to enforce different permission levels based on user roles.
- Examples: A hospital-administered insulin pump where only doctors can modify dosage settings, while patients can view logs.
Data Integrity View
The data integrity view focuses on protecting the accuracy and reliability of medical device data throughout its lifecycle. This includes:
- Encryption and checksum mechanisms to detect unauthorized data alterations.
- Audit logs and anomaly detection systems to identify potential tampering.
- Examples: A cloud-based patient health monitoring device that uses cryptographic hashes to verify the authenticity of transmitted health data.
Use block diagrams and system architecture diagrams to visualize these elements clearly, ensuring that all stakeholders understand the security framework.
Step 2: Identify Security Boundaries and Trust Zones
Once the architecture is defined, determine security boundaries and trust zones to enforce security controls.
Key Considerations:
- Trusted Zones: Secure areas such as on-device storage, cryptographic modules, hardware security modules (HSMs), and authenticated user access points.
- Untrusted Zones: External interfaces like network connections, cloud services, third-party APIs, and public networks that require additional security controls.
- Interfaces and Entry Points: Define attack surfaces where data enters and exits the system, including user interfaces, remote access points, wireless communication channels, and firmware update mechanisms.
- Data Classification: Categorize data based on sensitivity (e.g., patient health records, device operational data, cryptographic keys) and define appropriate protection mechanisms.
A threat model (using frameworks like STRIDE or DREAD) should be applied to analyze potential risks at these boundaries and assess their impact on security.
Step 3: Define Security Controls and Countermeasures
Implement security mechanisms to protect each part of the system and ensure compliance with industry best practices.
Key Security Controls:
- Authentication and Access Control:
- Implement multi-factor authentication (MFA) for user and device access.
- Enforce role-based access control (RBAC) to limit permissions.
- Utilize biometric authentication for high-security applications.
- Data Protection and Encryption:
- Use AES-256 encryption for data at rest and TLS 1.3 for data in transit.
- Implement secure boot and code signing to prevent unauthorized firmware modifications.
- Employ homomorphic encryption or secure enclaves for sensitive computation.
- Network Security:
- Apply firewalls and intrusion detection/prevention systems (IDS/IPS) at communication endpoints.
- Enforce secure pairing and communication protocols for Bluetooth and Wi-Fi.
- Use zero-trust network architecture to restrict access between different device components.
- Monitoring and Incident Response:
- Enable real-time logging and anomaly detection to identify security breaches.
- Develop an incident response plan aligned with FDA post-market cybersecurity guidance.
Step 4: Align with Regulatory and Compliance Standards
Ensure the security architecture aligns with industry regulations and best practices.
Relevant Standards:
- FDA Cybersecurity Guidance (2023): Requires threat modeling, security risk assessments, and secure update mechanisms.
- AAMI SW96: Recommends structured risk management and security controls.
- ISO 14971: Guides risk assessment methodologies for medical device security.
- IEC 62443: Provides best practices for industrial cybersecurity, applicable to connected medical devices.
Maintaining detailed security documentation will support regulatory submissions and compliance audits.
Step 5: Continuously Monitor and Improve Security
Security is an ongoing process. Implement mechanisms to adapt and respond to new threats.
Best Practices for Continuous Security:
- Conduct regular security assessments (e.g., penetration testing, vulnerability scans).
- Update software and firmware with security patches as threats evolve.
- Monitor cybersecurity alerts and threat intelligence feeds.
- Train personnel on security best practices and compliance requirements.
Conclusion
Creating an Architecture Security View is essential for designing secure, compliant medical devices. By defining system architecture, identifying security boundaries, implementing robust controls, aligning with regulatory requirements, and continuously monitoring threats, manufacturers can build resilient medical devices that protect patient safety and data integrity.
